PRODUCTS main technical parameters

SKV302A(5.5")

1. Number of spindles: 144
2. Spindle gauge: 180mm
3. Ring specification: 140*25.4mm
4. Speed of spindle: 2500-4000r/min
5. Spindle Direction: S or Z
6. Max. travrse (ring rail stroke): 205mm
7. motor Power:15KW
8. Dimensions: 14960*1200*2000(mm)
9. loading amount: 1000-1200g

SKV301(10")

1. Number of spindles: 12,15,24,36,48
2. Spindle gauge: 340mm
3. Ring specification: 254*38.1mm
4. Speed of spindle: 1800-2100r/min
5. Spindle Direction: S or Z
6. Max. travrse (ring rail stroke): 300 , 355mm
7. motor Power: 5.5 , 7.5 , 11KW
8. Dimensions: 5490-10060*1320*2080(mm)
9. loading amount: 7000-11000g

PRODUCTS Kaizhou Chemical Fiber Machinery

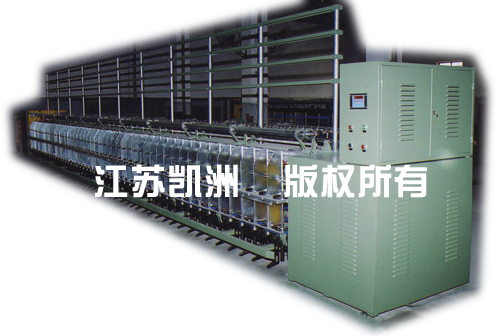

SKV303(4\")

Model:SKV303(4")

1. Number of spindles: 184
2. Spindle gauge: 140mm
3. Ring specification: ¢100mm*16.7mm
4. Speed of spindle: 3000-5000r/min
5. Spindle Direction: S or Z
6. Max. travrse (ring rail stroke): 300mm
7. motor Power: 15KW
8. Dimensions: 14880*1200*2000(mm)
9. loading amount: 500-1200g
